Magnification Magic

Magnification Magic

Our guide for power/lens
configuration and recommended use

How to Choose Between Fixed and Variable Magnification

  • Consider your task(s)
    1. Are you using magnification for a single task and/or do you only need a lower amount of magnification power?

      - If you only need magnification for one task such as reading, or you do not require much magnification power (2X) for all tasks, a fixed lens may be the right fit for you.

    2. Are you using magnification for multiple tasks and/or do you need a higher amount of magnification power?

      - When faced with tasks that require different working distances, such as reading and sewing, you may want a variable lens combo. This allows you to swivel between a single lens or stacked lenses providing variable magnification between 2X and 4X.

  • Consider your vision needs
    1. You may already know the magnification power you need based on your life experience or current prescription.  Use our chart below to select your preferred BigEye lens!

  • Consider your needed viewing area
    1. For example, the 7” lens is fantastic for reading or using cookbooks because you can fit more words under the lens, requiring less movement of the book or magnifier. (Note: Due to the weight of this lens, it is not available on some of our lamps).

    2. By contrast, when working with fine details, a smaller lens with more magnification power is a better choice.
    3. Keep in mind that as the power of the lens increases, the diameter of the lens decreases. Higher-powered lenses are smaller than lower-powered lenses.

Magnification Power & Lens Configuration Options

BigEye has 4 high quality magnifying lenses that can be used in 7 different ways. Depending on the level of detail and focal distance you need, we will guide you to which lens, or combination of lenses, will be most helpful. (Note that all options may not be available with your selected lamp.)

BigEye Magnification Options
2X/3D Fixed 5” Lens**Our standard lens
2X/3D Fixed 7” Lens
2.5X/6D Fixed 4” Lens
2.5X/6.58D Variable 5” and 4” Lenses
3X/9.16D Variable 5” and 4” (6D) Lenses
3X/9.16D Variable 4” (3D) and 4” (6D) Lenses
4X/10.74D Variable 4” (3D) and 4” (3D) Lenses

Explore Our Magnifier
Lenses and Their Uses

Photo Magnification Lens Configuration Lens Size Uses Lens Notes
2X/3D Fixed 5"

This is our standard lens. It is ideal for enhancing many tasks and projects when the user or task doesn’t require high powered magnification.

Available on all lamps
2X/3D Fixed 7"

This is our largest lens and can only be used on its own.  It is great for projects that need a wider visual field like painting or reading.

Unavailable on
10" desk and
floor models.
2.5X/6D Fixed 4" (6D)

This lens offers the most power of any fixed option, allowing for greater attention to detail when tightening tiny parts on glasses, jewelry, electronic devices, or viewing your cell phone.

Available on all lamps
2.5X/6.58D Variable 5"
and
4"(3D)

The lowest powered variable magnification option creates flexibility to switch between tasks requiring different magnification. Use in tandem, or the 5” lens on its own.

Available on all lamps
3X/9.16D Variable 5"
and
4"(6D)

This variable magnification lens combination provides flexibility and is ideal when you need more magnification for close up and detail work.

Available on all lamps
3X/9.16D Variable 4"(3D)
and
4"(6D)

This variable magnification provides aligned optical centers in the magnifiers’ as both lenses are the same diameter.

Available on all lamps
4X/10.74D Variable 4"(6D)
and
4"(6D)

Our highest powered variable magnification option to maximize the finest details.


Available on all lamps

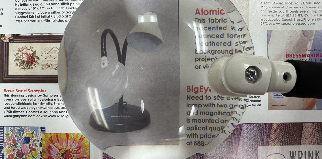

Variable lens adjustments

Showcase of how the lenses swivel from variable to fixed
